SuperATV - Can-Am Outlander 8" Portal Gear Lift

Gear Up to Gear Down in Your Outlander
Conquer any terrain with ease when you install SuperATV’s 8” Portal Gear Lift. Your Can-Am Outlander will be able to take on mud and rocks better than you thought possible. You’ll get unmatched performance with this kit that combines a gear reduction and a lift in one badass package. And with a choice of 45% or 60% gear reduction, plus billet or cast aluminum housings, your Outlander will become a true powerhouse.

Tough Terrain will be Easy to Conquer
When the mud gets deep and the rocks get gnarly, your rig needs a little extra muscle. That’s where a gear reduction comes in. By lowering your gearing, you get back the low-end power big tires typically take away, so your machine can dig in and keep moving. Choose between a 45% or 60% reduction and let your Can-Am Outlander reach its full potential.

Protects Your Drivetrain
With the gear reduction built into the wheel hub, our GDP portals take the load off the rest of your drivetrain. They take on the tough work, protecting parts like your axles, differential, driveshaft, and transmission from straining to move large tires.

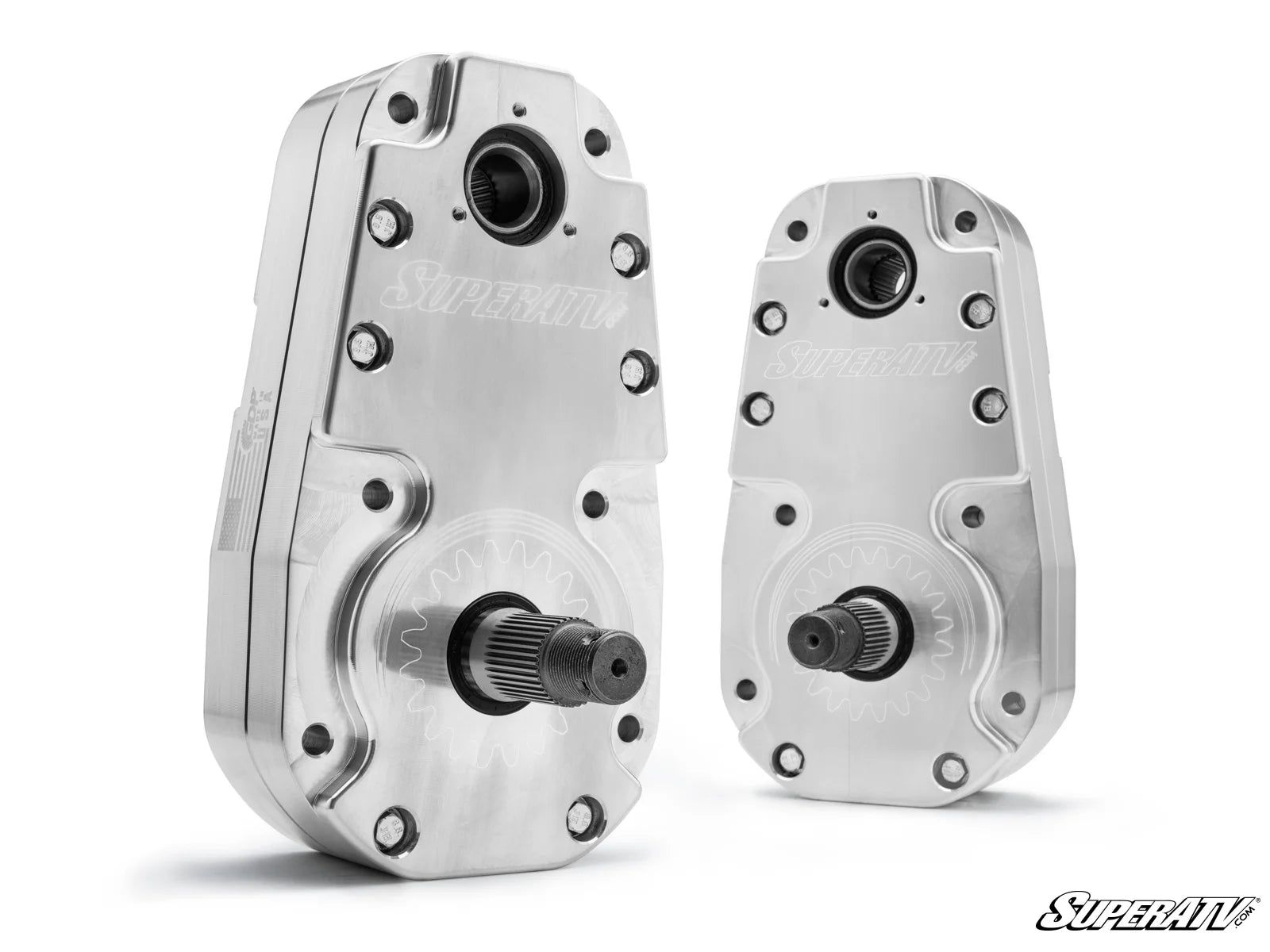

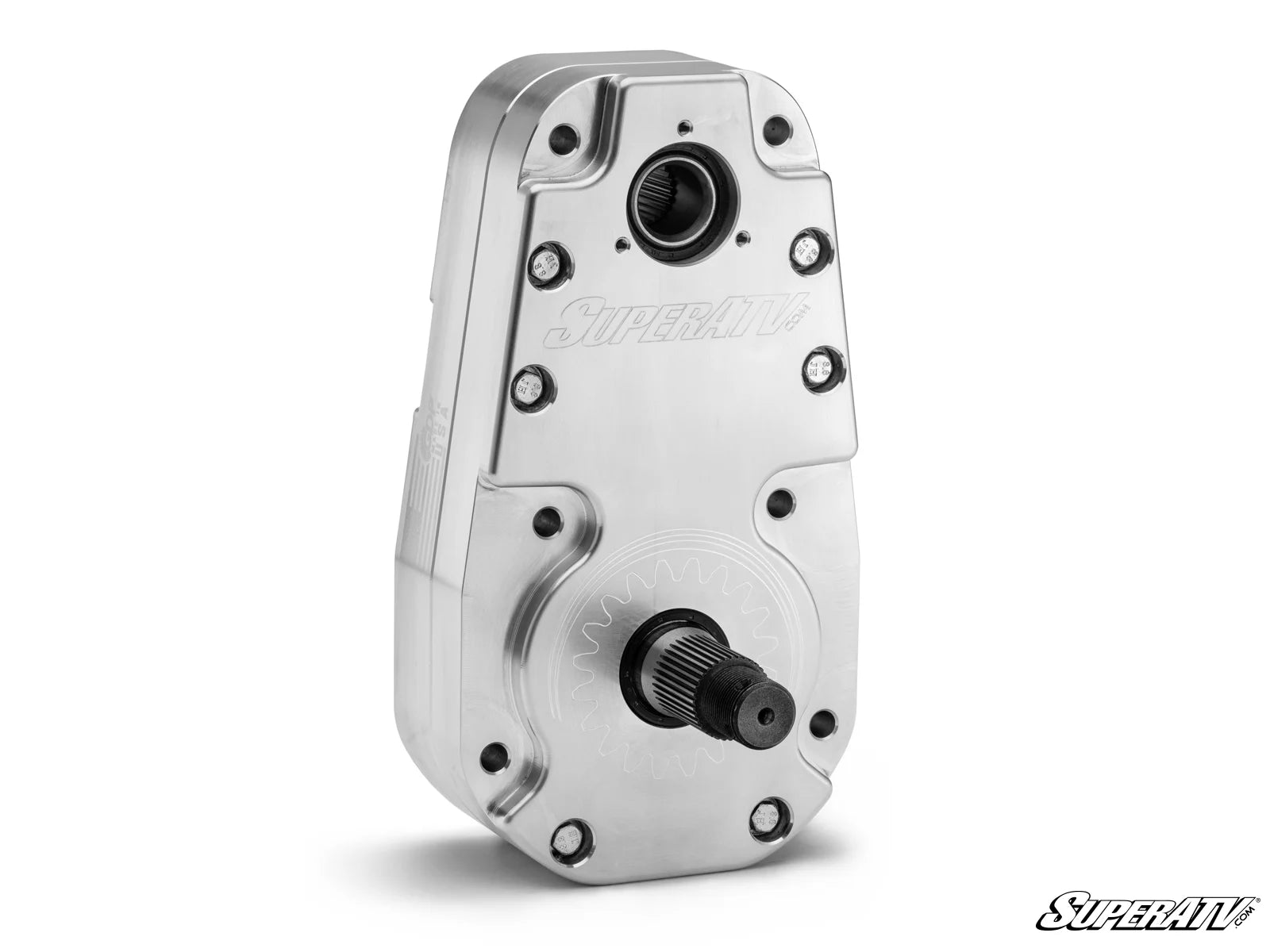

GDP Portals are Unmatched
Our GDP 8” Portals are built to handle any abuse you put them through. You can choose between cast or billet aluminum. They’re both ultra-strong and ready to take a beating. Plus, the strong steel alloy plates give them extra armor.

• Our housings are reinforced for gear retention and optimized for oil flow
• Advanced steel alloy backing plates are stronger than chromoly
• Enhance with Portal Blood - gear oil formulated for GDP Portals
• There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

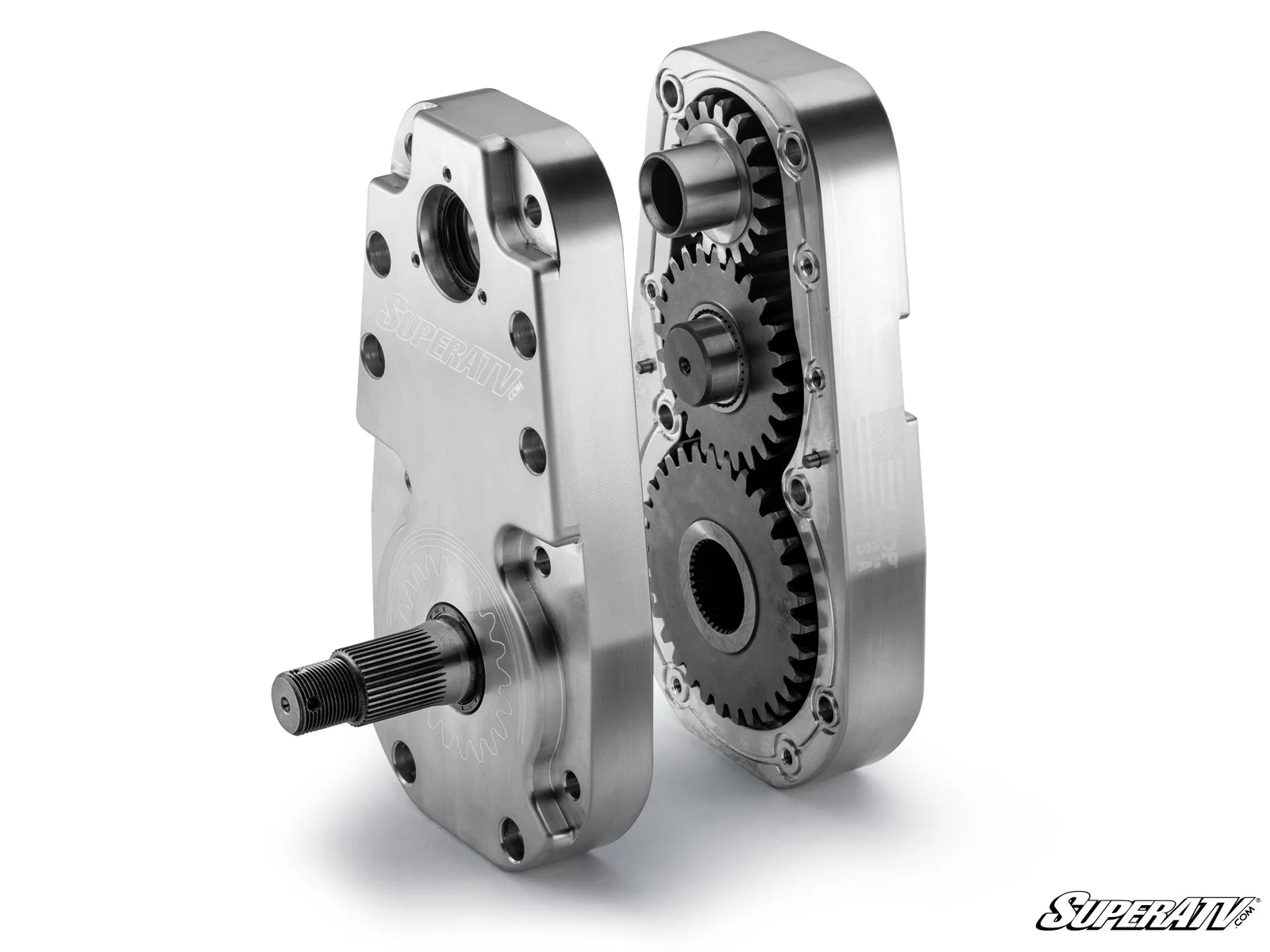

Advanced Gaskets, Seals, and Bearings
Our portals use:

• Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks
• Double-angular contact output bearings to prevent premature wear

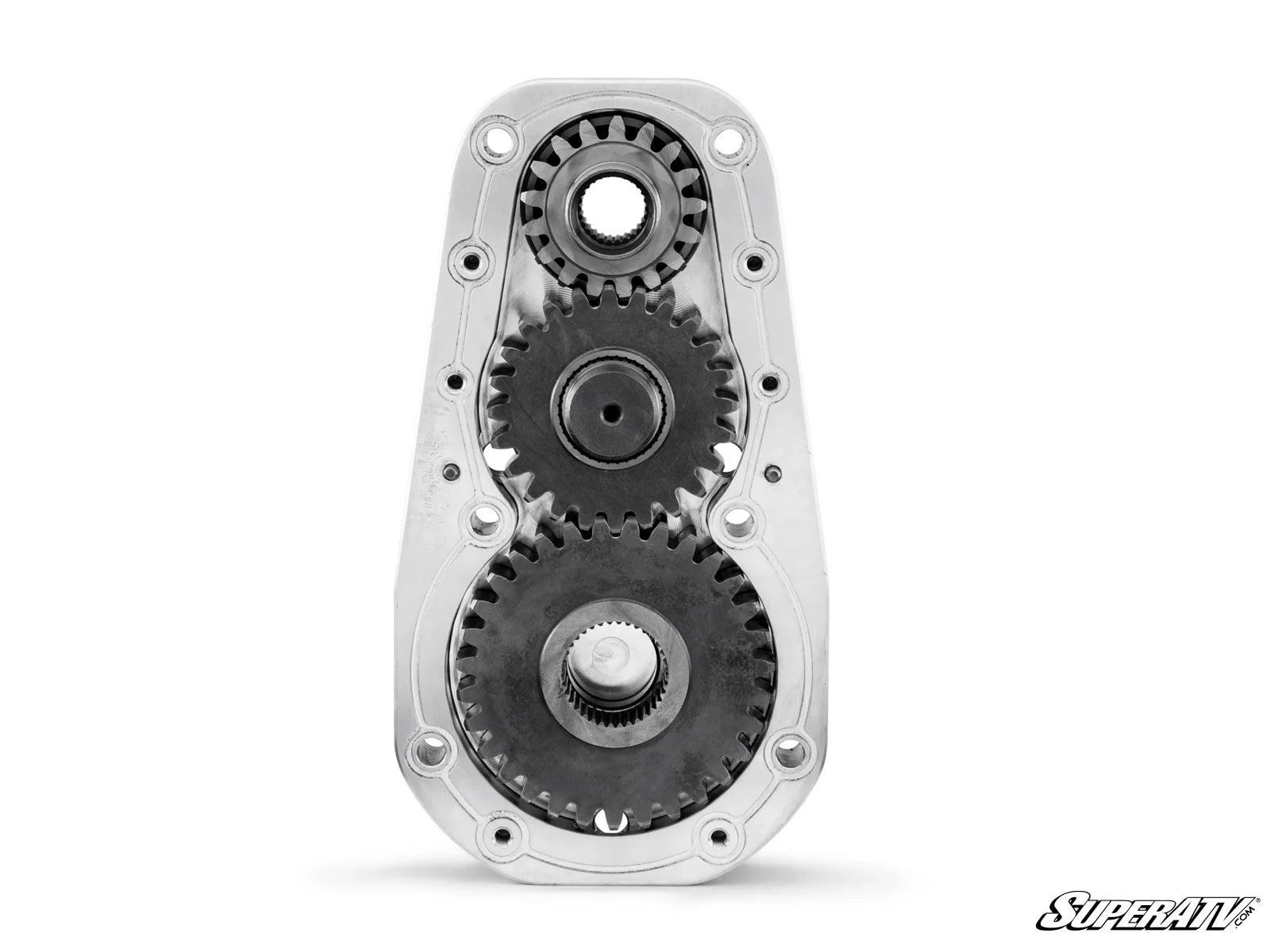

• Roller idler and drive bearings to maintain perfect gear meshing

The Customer Service You Deserve

• We have unbeatable customer service. They’re here to help you decide which 8” Portal Gear Lift works best for you and your riding style. Go ahead—give us a call today.

Can-Am Outlander 8” Portal Gear Lift Includes:

• (4) Assembled portal hub complete with 9310 gears, seals, output shaft, advanced gaskets, and thrust bearings
• (4) Universal hubs and stainless steel slotted rotors with lugs
• (4) Specialized steel alloy backing plates
• (4) Steel caliper mounting brackets
• (16) Shims
• (12) Rear A-arm bushings
• (6) Steel sleeves
• Extended brake lines
• All required hardware, including recessed castle nut socket

Can-Am Outlander Max Tire Size
Max Tire Size	Required Suspension
32"	Stock suspension
Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.

• Patent # 8,985,264, 11,299,042, 11,554,662, 12,005,776
