Polaris Sportsman/Scrambler XP 5” Kit
Polaris Sportsman/Scrambler XP 5” Kit
Couldn't load pickup availability

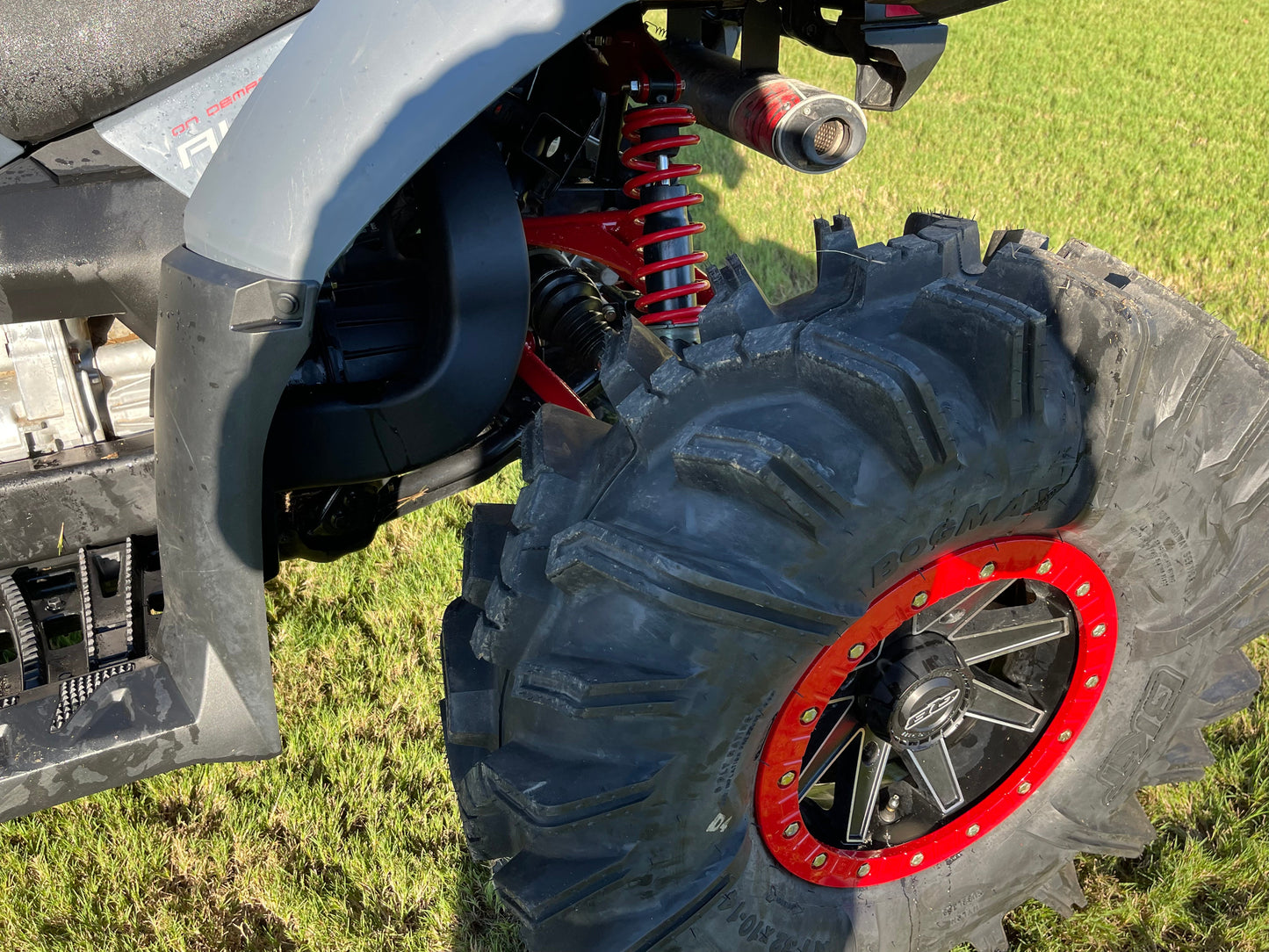

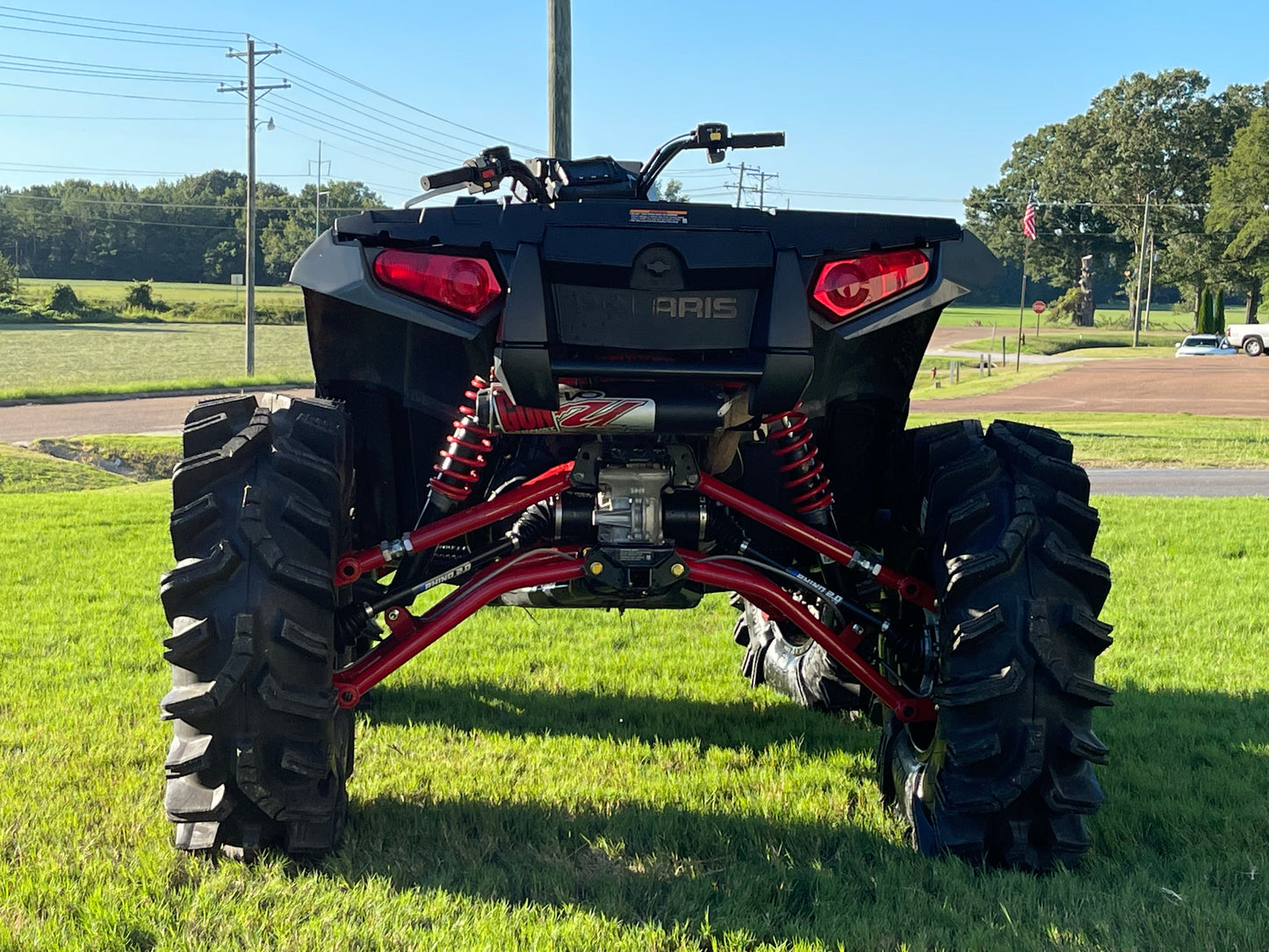

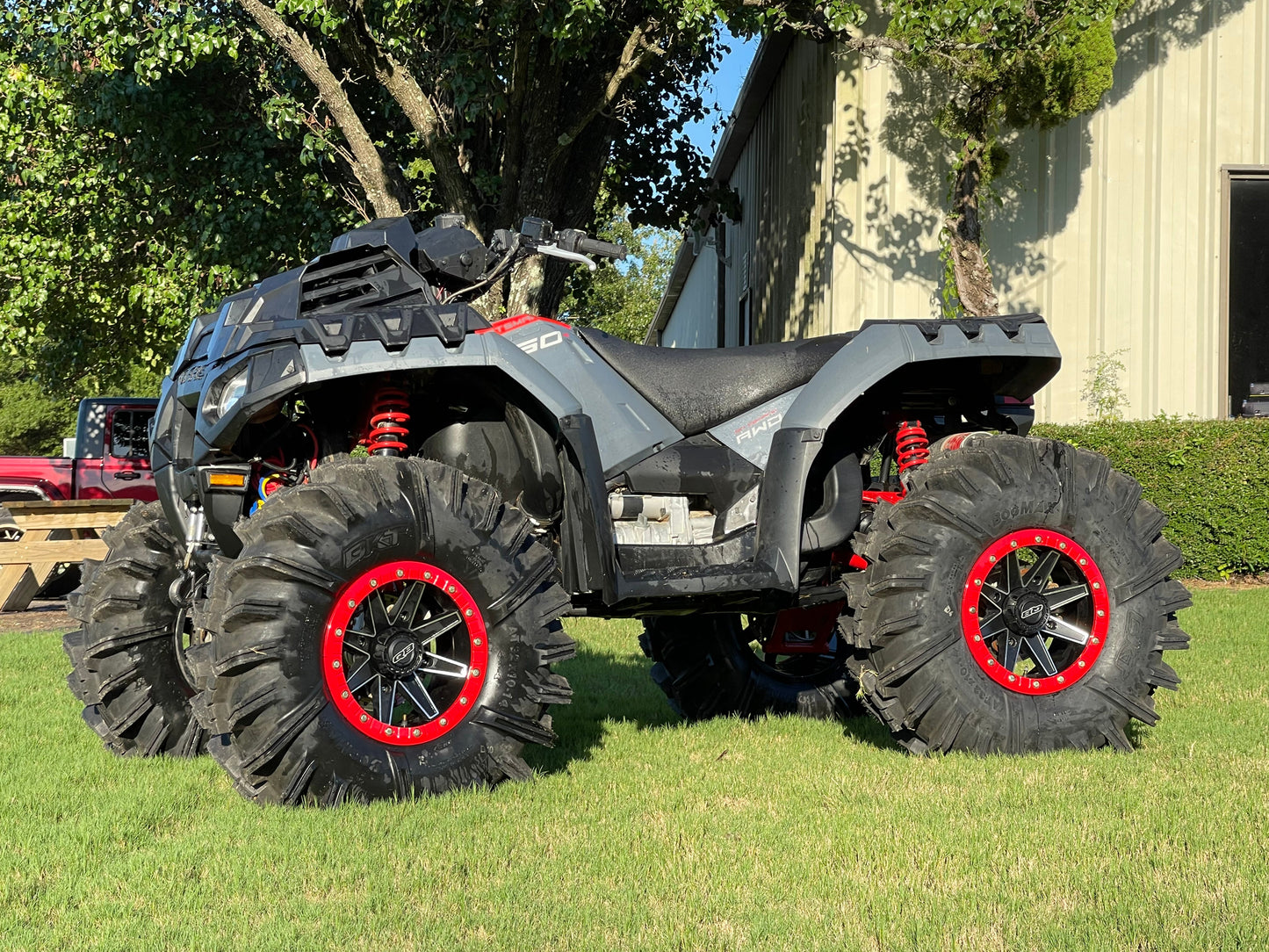

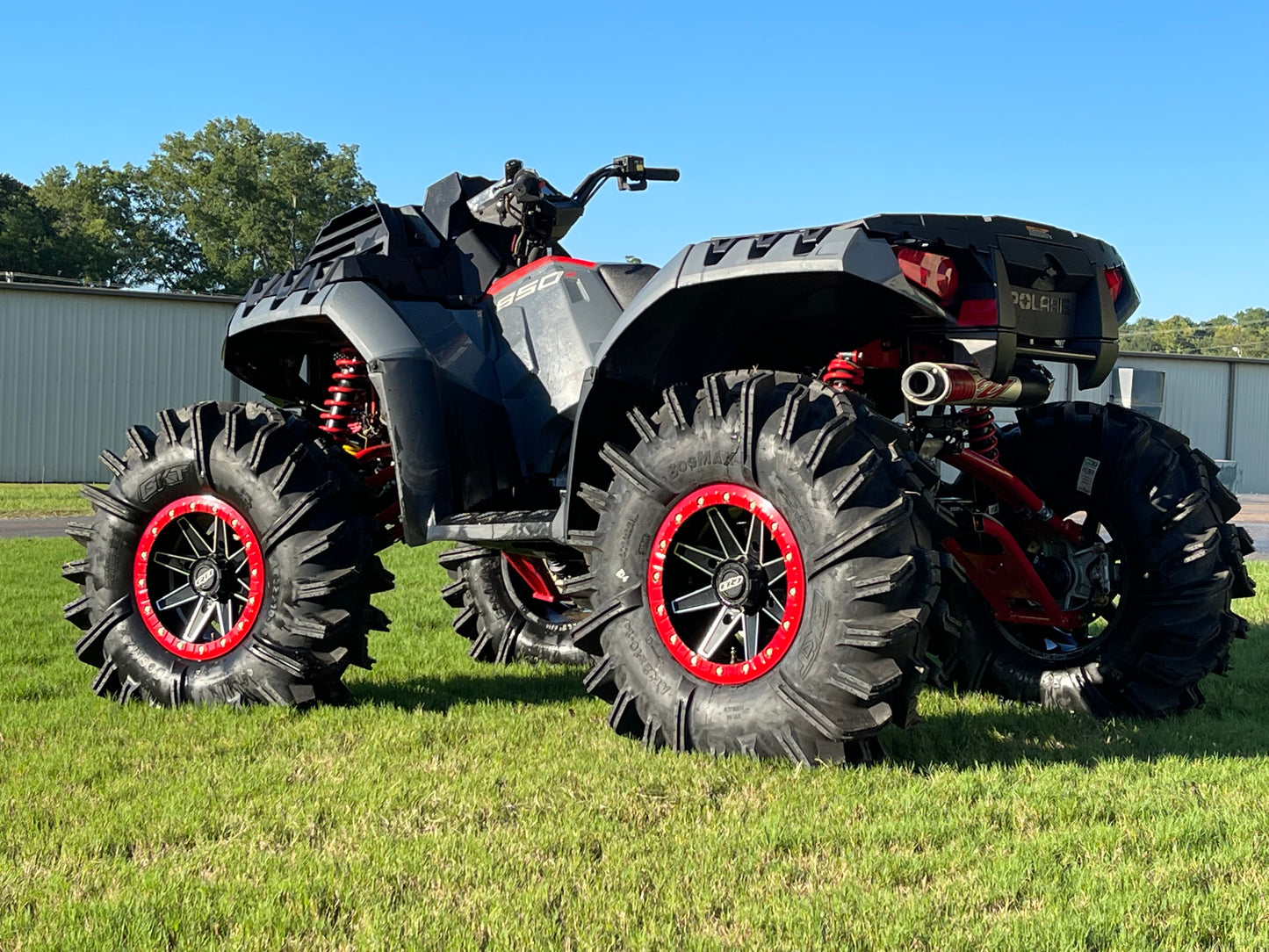

These arms are constructed from 0.250" wall USA DOM and allows for a 35" tall tire. They are portal compatible and and allow for OEM hardware and ball joints to be used. For 2010-2019 models, bushings and 28 pivot cap seal part number #1543611 are required. We offer Garage Product Bushings as an option at checkout, but currently do not offer the pivot cap seals. For 2020+ machines, OEM bushings and seals can be reused.
Kit includes:
- 1 driver upper front a-arm
- 1 driver lower front a-arm
- 1 passenger upper front a-arm
- 1 passenger lower front a-arm
- 1 driver upper adjustable rear a-arm
- 1 driver lower rear a-arm
- 1 passenger upper adjustable rear a-arm
- 1 passenger lower rear a-arm
- 2 front Rhino 2.0 extended length axles (optional)
- 2 rear Rhino 2.0 extended length axles (optional)
- Garage Product Bushings (optional)
- front shock relocate bracket (5 pcs)
- rear shock relocate bracket (2 pcs)
- 1 driver side complete tie rod replacement with heims
- 1 passenger side complete tie rod replacement heims
- 1 driver side rear extended brake line
- 1 passenger side rear extended brake line
- 20 grade 10 hardware bolts
- 24 lock nuts
Fitment:
- ALL 2010-2014 Polaris Sportsman 550
- ALL 2010+ Polaris Sportsman XP 850
- ALL 2015+ Polaris Sportsman XP 1000
- ALL 2016+ Polaris Sportsman Highlifter 850
- ALL 2016+ Polaris Sportsman Highlifter 1000
- ALL 2013+ Polaris Scrambler XP 850
- ALL 2014+ Polaris Scrambler XP 1000
Warranty: Arms are covered under a limited lifetime warranty for original purchaser. All warranty claims must be sent in for examination with purchase date and order number. Heim joints are considered a wearable item, and therefore are only covered for 30 days from original purchase date.
