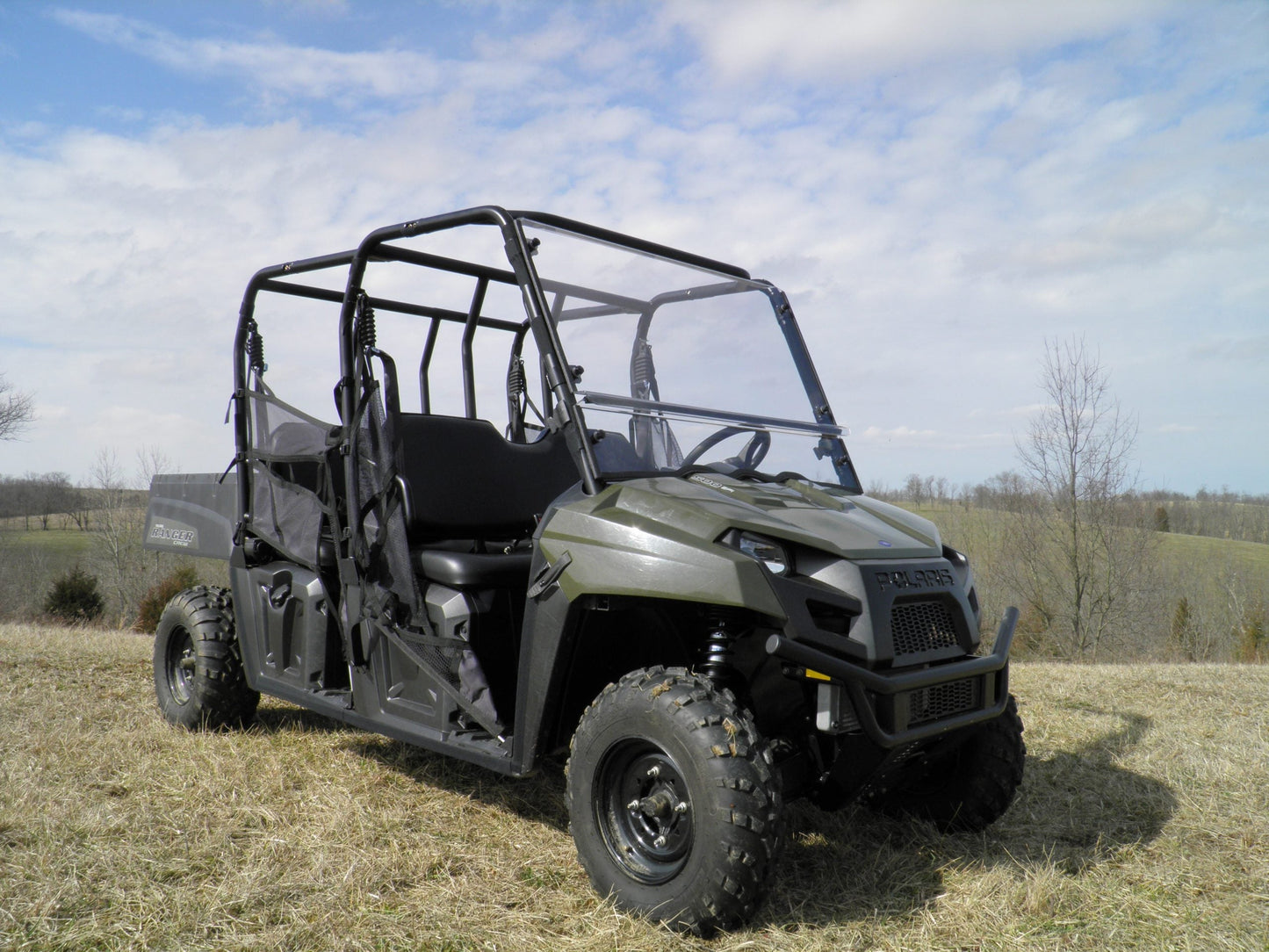

Polaris Ranger Mid-Size Crew - 2 Pc Windshield

FITMENT:  2011-2014 Polaris Ranger Mid Size Crew 500 and 570

Let’s build the windshield you want with the options you desire.  So, where do we start?  We start with heavy-duty materials, cut with CNC precision, made in America.  We start with a 2-piece Scratch-Resistant Lexan windshield with loop clamps.  The unique design of the 2-piece windshield offers function in all seasons.  During colder months, the full windshield offers the needed front wind protection.  During warmer months, the 2-piece independent windshield sections allows the lower section to be removed for great air flow while the top remains on as a bug shield.  The windshield mounts using vibration-damping loop clamps made of zinc-plated steel with a vinyl coating for cushioning.  All hardware needed for the loops clamps is provided.

BASE MODEL:

• ¼” POLYCARBONATE-Both the upper and lower windshield sections are made of ¼” Lexan polycarbonate.  Lexan is the original brand of polycarbonate and offers incredible impact strength.  When choosing a windshield always select ¼” thickness.  ¼” polycarbonate will not bow at high speeds or when hauling as compared to 3/16”.
• 2 PIECE DESIGN-Each windshield section mounts independently of the other.  This allows the rider the option of riding with both sections on or just the top or bottom on when more air in the cab is desired.
• AUTOMOTIVE TRIM-The bottom of the lower windshield section has a flexible PVC edge trim installed.  The trim on the bottom of the lower section includes a flexible bubble to better seal any gaps between the windshield and hood line.  The trim along the hood line is standard in all windshield models.
• BENDS-All of our 2-piece windshields have bends for design purposes or to add strength to the windshield.

• QUICK INSTALL STRAPS and TRIM-The Quick Install Straps provide the quickest and easiest installation of a windshield on the market.  NO TOOLS REQUIRED!  Made of military-grade hook and loop, simply thread the straps through the windshield slots, mount, and attach.  IT'S THAT EASY.  Additional automotive trim is attached along the sides of the windshield.
• QUICK CONNECT CLAMPS-Our top-of-the-line clamps are a powder-coated 2-piece steel clamp.  Once installed, the windshield sections can be removed or re-installed by simply removing the knob bolt.  Additional automotive trim is attached along the sides of the windshield.
• VENTS-Add vents to your windshield for air flow when needed.  A set of vents are installed in front of the driver and passenger.  The vents open and close by simply sliding the cover side-to-side.
• SCRATCH-RESISTANT COATING–Need a scratch-resistant hard-coated windshield?  Choose the scratch-resistant option and the upper windshield section will be manufactured using MR10 (Mar-Resistant) Lexan.  MR10 is a scratch-resistant polycarbonate that combines the impact strength of Lexan with a proprietary abrasion and UV-resistant coating on both sides.

Whichever options you choose, you’re buying a quality windshield manufactured in the USA by 3 Star Industries.

Click here for installation instructions, loop clamps

Click here for installation instructions, quick install straps

Click here for installation instructions, quick connect clamps

Upon receipt of your windshield and prior to removing the protective film from each side, please….

• Inspect for any damages, including scratches protruding through the protective film
• Ensure product satisfaction with mounting hardware
• Confirm correct fitment
