Polaris Ranger 500 700 800 Rear Right Axle 2007-2017

Fully Assembled inboard / outboard cv joints with neoprene boots
Heavy Duty Axle

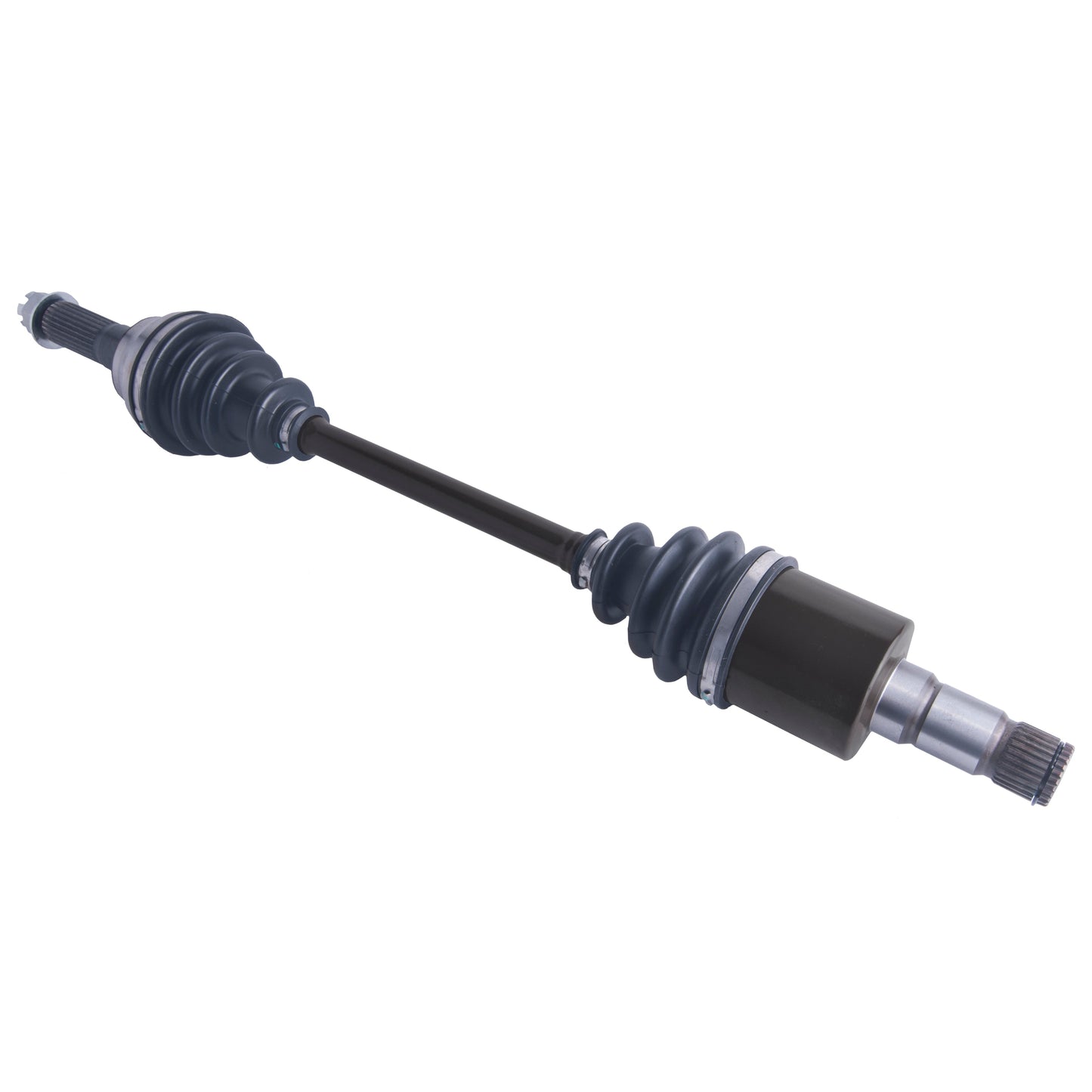

Brand New Complete CV Axle Assembly

This axle replaces OEM# 1332575, 1332647, 1332876, 1332721, 2203741, 1332502, 2204857

This axle works on the following models:

2010 - 2015 Bobcat 3400 Series Utility Vehicle Model # AJN

2007 - 2009 Polaris 500 Ranger
2007 - 2009 Polaris 700 Ranger / LE
2010-2017 Polaris Ranger 800 6X6

***NOTE: Please verify the measurments for the BOBCAR 3400.***

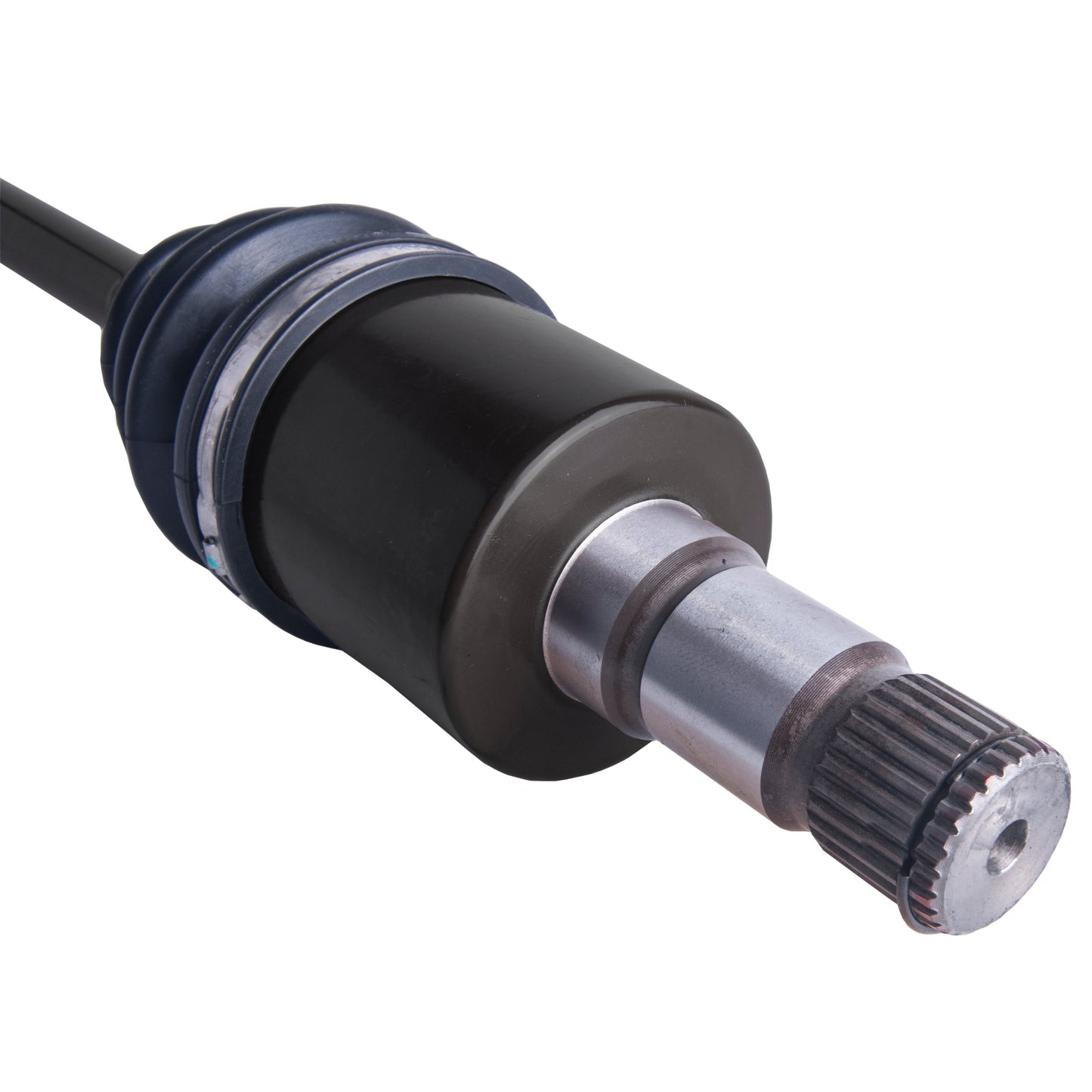

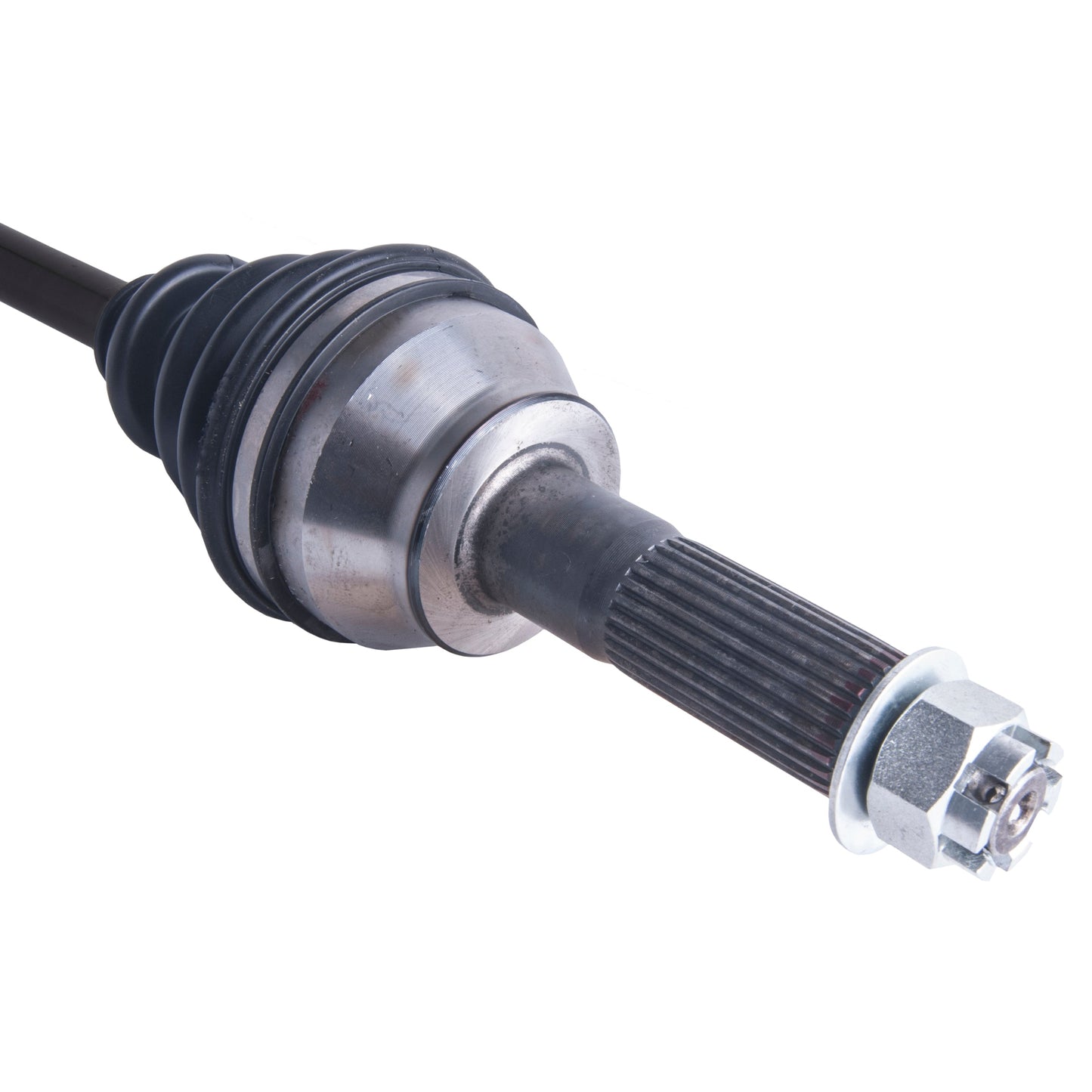

This axle has a double spline on the differential side. It has 27 splines on the inboard and 26 on the outboard spline.
This axle measures 25.9" when fully compressed.

If your axle compresses to 25.66" and also has a double spline on the differential side with the same spline counts as this axle,
you would need a 201-336R-01R

If your axle does not have double splines, has 28 splines on the inboard, 26 splines on the outboard, and measures 26.75" when fully compressed,
you would need 201-319R-01B.

If your axle does not have double splines , has 28 splines on the inboard, 26 splines on the outboard, and measures 29" when fully compressed,
you would need 201-348R-01B
