Polaris Ranger 500 700 800 4X4 / 6X6 Rear Left Axle 2007-2017

Fully Assembled inboard / outboard cv joints with neoprene boots Heavy Duty Axle.

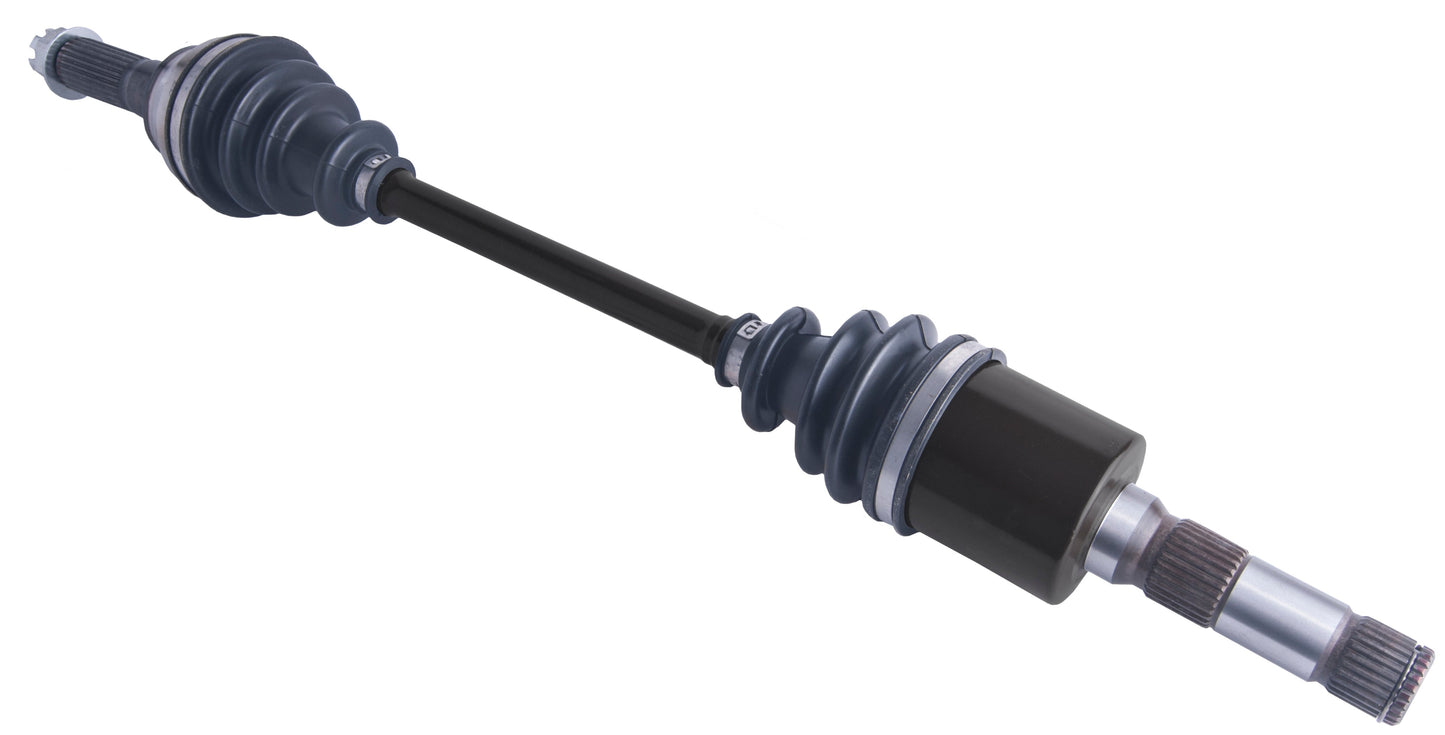

OEM Replacement Brand New Complete CV Axle Assembly

This axle replaces OEM# 1332575, 1332647, 1332876, 1332721, 2203741, 1332502, 2204857

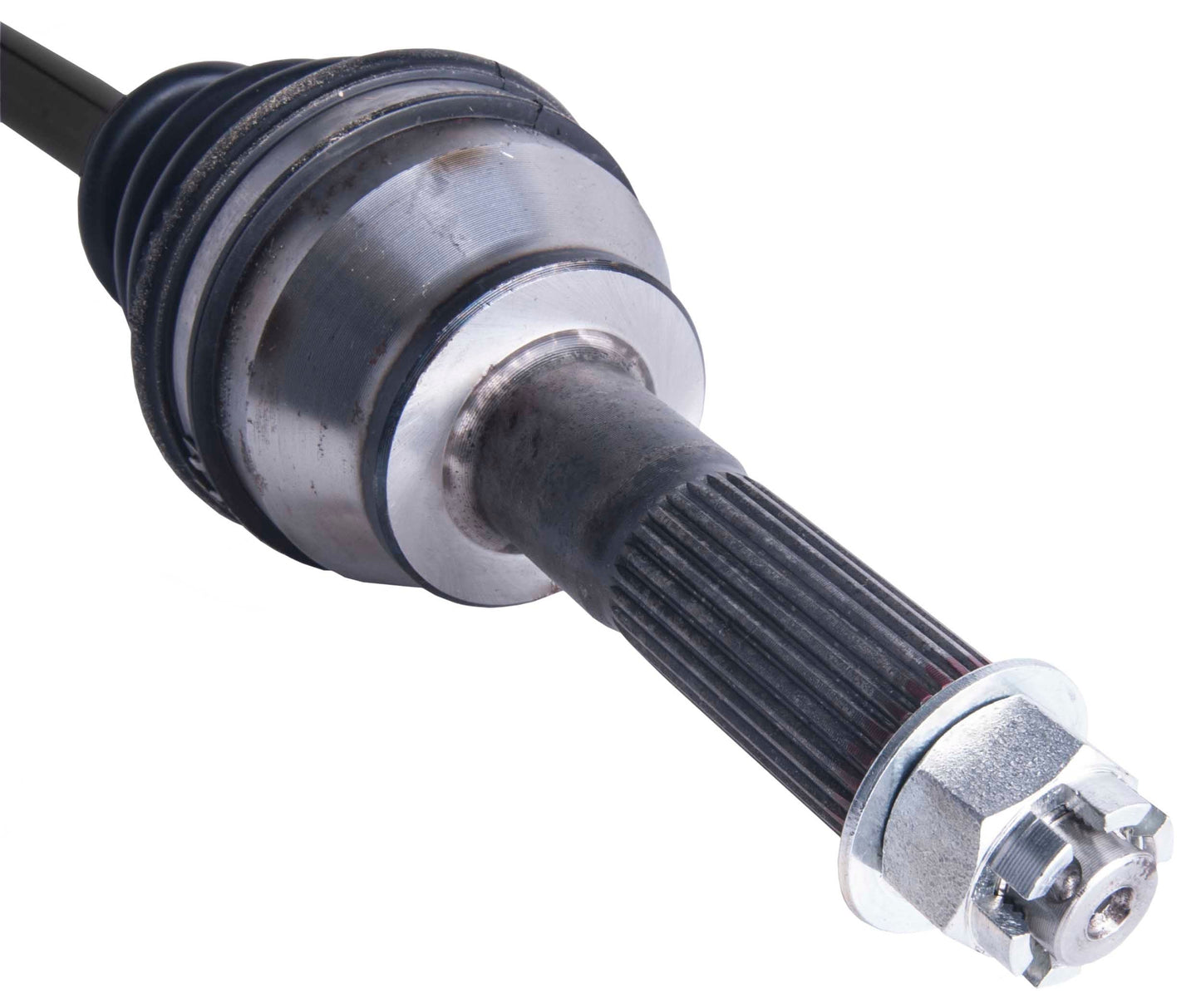

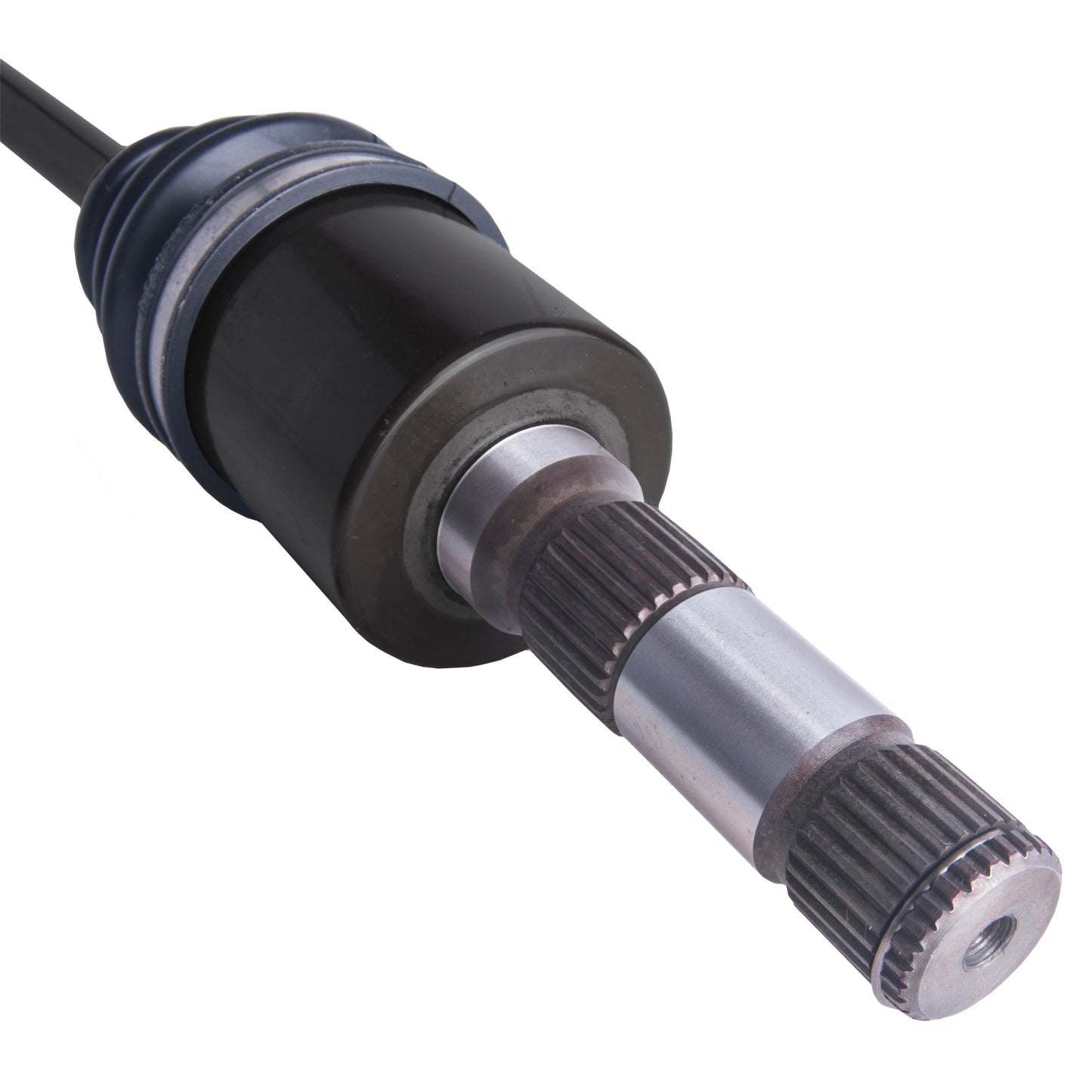

This axle has a double spline on the differential side. It has 27 splines on the inboard and 26 on the outboard spline. This axle measures 27.31" when fully compressed.

This axle works on the following models:

2007 - 2009 Polaris 500 Ranger 2X4
2007 - 2009 Polaris 700 Ranger MFG after 8/28/06
2010 - 2017 Polaris 800 Ranger 6X6 Models

2010 - 2015 Bobcat 3400 Series Utility Vehicle Model # AJN

***NOTE: Please verify the measurements for the BOBCAT 3400.***

If your axle compresses to 28.25" and also has a double spline on the differential side with the same spline counts as this axle, you would need a 201-335R-01L

If your axle does not have double splines, has 28 splines on the inboard, 26 splines on the outboard, and measures 26.75" when fully compressed, you would need 201-319R-01B

If your axle does not have double splines , has 28 splines on the inboard, 26 splines on the outboard, and measures 29" when fully compressed, you would need 201-348R-01B
