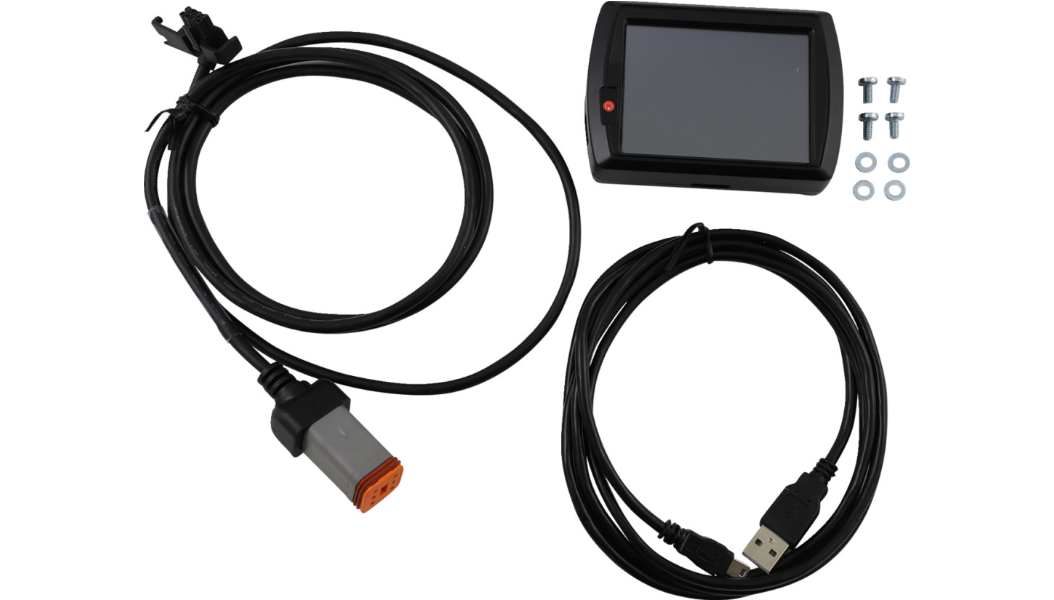

DynoJet - PV-2B - Power Vision Tuning Module - Harley-Davidson - 6-Pin

Features

• The sophisticated yet easy-to-use 3.5" full-color touch-screen display mounts to handlebars with integrated Amps 4-hole threaded inserts; also mounts to most aftermarket accessory mounts that feature AMPS 4-mounting options
• The display's interface cable plugs directly to the bike's diagnostic connector
• NO COMPUTER REQUIRED; simply select the tune and follow the on-screen prompts to flash the bike; tunes can also be edited directly from the Power Vision
• Utilizes WinPV (Windows PC-based tuning application)
• Stores up to six different tunes that can be flashed to the bike
• Downloads and stores the stock calibration in case OEM restoration is needed; stock calibration can also be saved as an editable copy and used as a starting point
• Dynojet preconfigured tunes are preloaded on the unit; Power Vision will identify the bike's information and automatically sort hundreds of applicable, dyno-proven tunes
• Custom tunes can be loaded by a tuning shop or received via email and loaded onto the device
• Displays all J1850 H-D vehicle data, wide-band air fuel ratio and various calculated channels (including MPG instant and trip MPG)
• Auto tune basic and Pro3 calculates and stores fuel trims to optimize fuel curve
• Checks and clears diagnostic codes
• Features adaptive trims and idle offset (with bike running)
• Black series features a flat black outer case
• Made in the USA
• All Power Vison returns and/or adjustments must be made directly with Dynojet Research. The Power Vision may be used to on any bike to read and clean trouble codes.

***Additional info on Power Vision Module:

It will come with a free base map for your bike and a combination of parts. Stage 1 base maps work very well but as you add cams and short exhausts, the base map will be more off and would need a true dyno tune to dial it in. The base map we will set up will be from a Harley that was tuned on FastTunes dyno. You will read the stock file from your bike and email it to DC@fasttunes, and we will return a tuned base file.
